S&S Swan Maintenance - Rudder construction drawings.
10 July 2008 - 08:48
#1
Post Reply
cao@knudsen-plast.dk
Join Date: 01 February 2007
Posts: 35

Rudder construction drawings.

Dear freinds,



Can anyone provide me with a copy of the original construction drawing of the rudder for a Swan 47.

Thank you in advance and I wish you all a wonderful summer.



Many regards

Carsten Overland

Cygnus Peña.  47 # 20
12 July 2008 - 08:37
#2
Post Reply
jayne
Join Date: 05 February 2007
Posts: 102

Dear Carsten,
Have the original STYRSYSTEM drawings for the 47, and will get them "shrunk" and posted asap. when you've had a look, if you'd like a full size copy just let me know and I'll post it to you.
Ciao for now.
Jayne
047/47

12 July 2008 - 10:21
#3
Post Reply
jayne
Join Date: 05 February 2007
Posts: 102

Hello again,

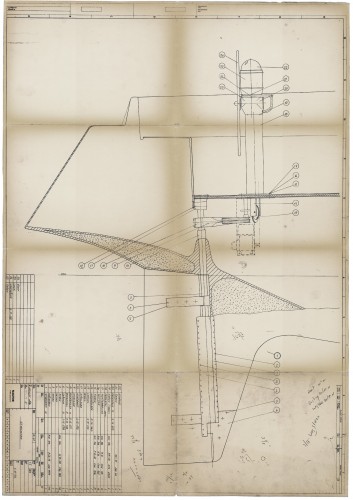

here is the low resolution version of the steering system original. if you'd like the original can send it on CD, as it is 99Mb in TIFF format. very clear.

hope this helps for now.
cheers.
Jayne
047/47
13 July 2008 - 08:43
#4
Post Reply
cao@knudsen-plast.dk
Join Date: 01 February 2007
Posts: 35

Dear Jayne,



Thank you very, very much.

I am really thankful!

If possible please post me the copy.

Carsten Overland

Langs Hegnet 57

2800 Kgs. Lyngby

Denmark.

I really hope to be able to help you some day.



Many regards

Carsten
14 July 2008 - 08:29
#5
Post Reply
jayne
Join Date: 05 February 2007
Posts: 102

Dear Carsten,
not a problem at all. have posted you the CD this morning, so be on the lookout.
Good monday to all.
ciao
Jayne
047/47
18 July 2008 - 11:28
#6
Post Reply
cao@knudsen-plast.dk
Join Date: 01 February 2007
Posts: 35

Dear Jayne,

CD came yesterday!

Thanks very much.

Many regards and some wonderful sailing.

Carsten
