SWAN by S&S
1970-1974 - S&S des. #2035 - 59 hulls built
GENERAL DIMENSION
| Loa: | 36.35 ft | 11.08 m |
| Lwl: | 27.33 ft | 8.33 m |
| Beam: | 10.79 ft | 3.29 m |
| Draft: | 6.4 ft | 1.95 m |
| Ballast: | 7300 lbs | 3300 kg |
| Displacement: | 15400 lbs | 7000 kg |
| Antifouled area: | 355 ft² | 33 m² |
ON BOARD SYSTEMS
| Fuel: | 26.4 gal(US) | 100 l |
| Fresh water: | 47.5 gal(US) | 180 l |
| Service power: | 12 v, 105 ah | |
| Engine: | Volvo Penta MD2B 25 hp at 2500 rpm |
|

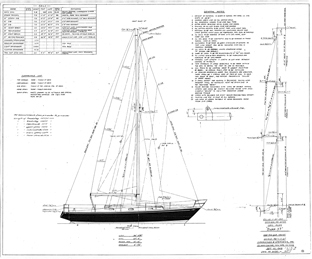

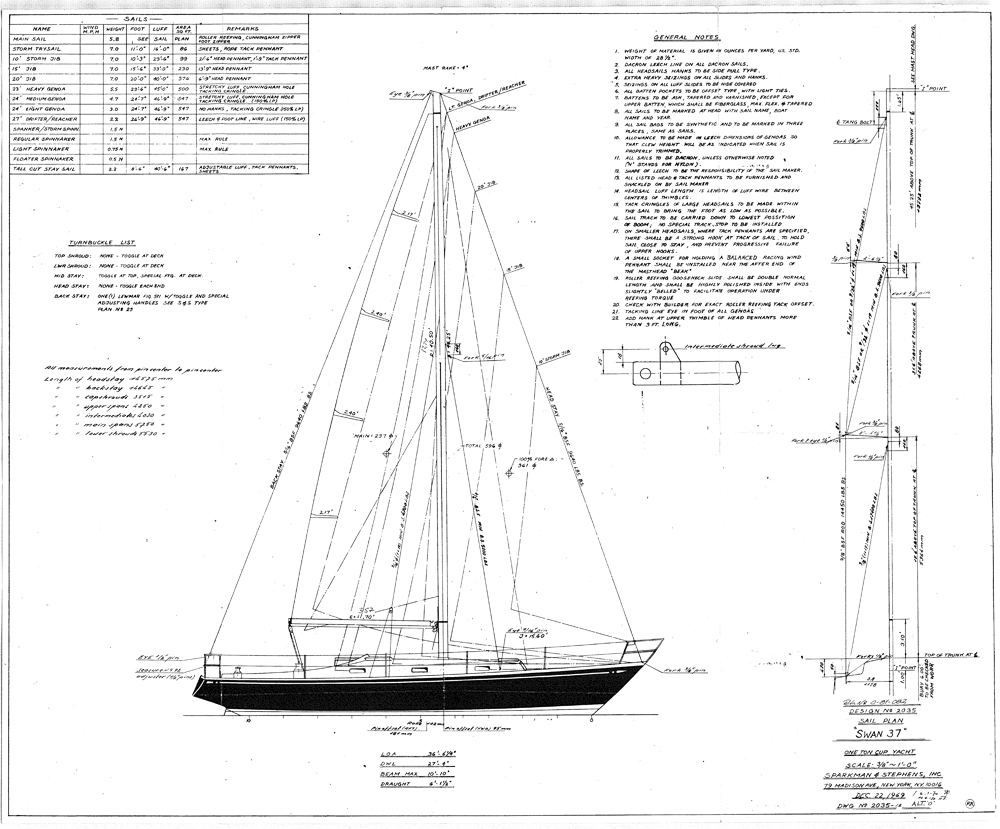

SAIL PLAN
| I: | 46.25 ft | 14.1 m |
| J: | 15.6 ft | 4.75 m |
| P: | 40.5 ft | 12.34 m |
| E: | 11.7 ft | 3.57 m |
| Fore triangle: | 360.7 ft² | 33.5 m² |
| Main: | 236.9 ft² | 22 m² |
| Genoa 150%: | 541.1 ft² | 50.3 m² |
| Spinnaker: | 1299 ft² | 121 m² |
