Associated Swan 36's:



















































1967-1970 - S&S des. #1710.51 - 90 hulls built
GENERAL DIMENSION
Loa:
35.79 ft
10.91 m
Lwl:
25.94 ft
7.77 m
Beam:
9.65 ft
2.94 m
Draft:
6.2 ft
1.9 m
Ballast:
7900 lbs
3600 kg
Displacement:
15400 lbs
7000 kg
Antifouled area:
344 ft²
32 m²
ON BOARD SYSTEMS
Fuel:
13.2 gal(US)
50 l
Fresh water:
44.9 gal(US)
170 l
Service power:
12 v
Engine:
Volvo Penta MD2
15 hp at 2300 rpm

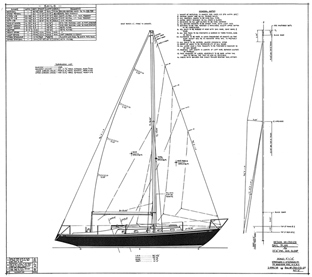

SAIL PLAN
RORC
I:
43.04 ft
13.21 m
J:
14.04 ft
4.28 m
P:
38.04 ft
11.59 m
E:
12.04 ft
3.67 m
Fore triangle: 301 ft² 28 m²
Main: 229 ft² 21.3 m²
Genoa 150%:
452 ft²
42 m²
Spinnaker:
1088 ft²
101 m²
IOR
I: 43.2 ft 13.17 m
J: 13.7 ft 4.18 m
P: 38 ft 11.58 m
E: 13.05 ft 3.98 m
