S&S Swan Maintenance - Bow Plate 38'
16 April 2013 - 03:28
#1
Post Reply
Vincent
Join Date: 12 March 2007
Posts: 24

Bow Plate 38'

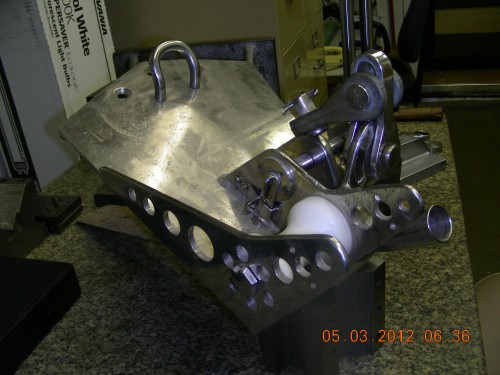

I discovered a little crack in the welding of the part of the bow plate (correct name?) last fall which holds the furler... I am then trying to find all the missing components... while getting it refinished. In doing so I always wanted to figure out all the detail of nuts and bolts missing above the roller.
Is there any drawing and or specs. available somewhere..or can someone send me complete photograph survey of theirs, please?
There is a notch on the nut head of the roller axle, I am sure some additional hardware was designed like a stopper of some sort... there is a thread on the upper part, it probably retained the body of the anchor ...
Any help would be greatly appreciated.
THank you so much,
Vincent
Hawksbill 38' 106

Bow plate
16 April 2013 - 15:54
#2
Post Reply
Jyrki
Join Date: 31 January 2007
Posts: 52

Dear Vincent,

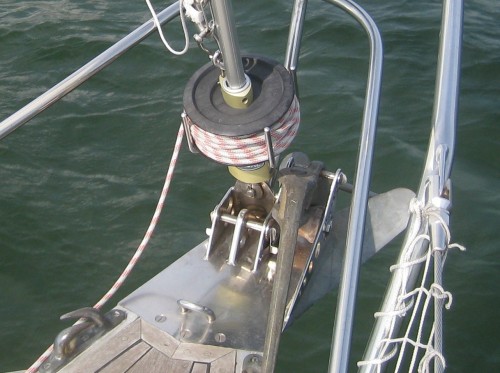

Attached please find a picture of the stemhead of the Infant. There is, as you suggested, a bolt locking the anchor on the roller. The bolt can not be drawn out of the outer (starboard) hole. If you need more detailed pictures, I can send them in a week or two.

Regards

Jyrki (Infant 38/014)
16 April 2013 - 18:45
#3
Post Reply
Vincent
Join Date: 12 March 2007
Posts: 24

That would be great to have more photographs, thank you so much.
