SWAN by S&S

1976-1978 - S&S des. #2238 - 32 hulls built
GENERAL DIMENSION
Loa: 43.25 ft 13.18 m
Lwl: 33.33 ft 10.02 m
Beam: 13.41 ft 4.09 m
Draft: 7.4 ft 2.3 m
Ballast: 11900 lbs 5400 kg
Displacement: 26500 lbs 12500 kg
Antifouled area: 452 ft² 42 m²
ON BOARD SYSTEMS
Fuel: 39.6 gal(US) 150 l
Fresh water: 99.1 gal(US) 375 l
Service power: 12 v, 190 ah
Engine: Perkins 4.108 27KW
37 hp at 3000 rpm

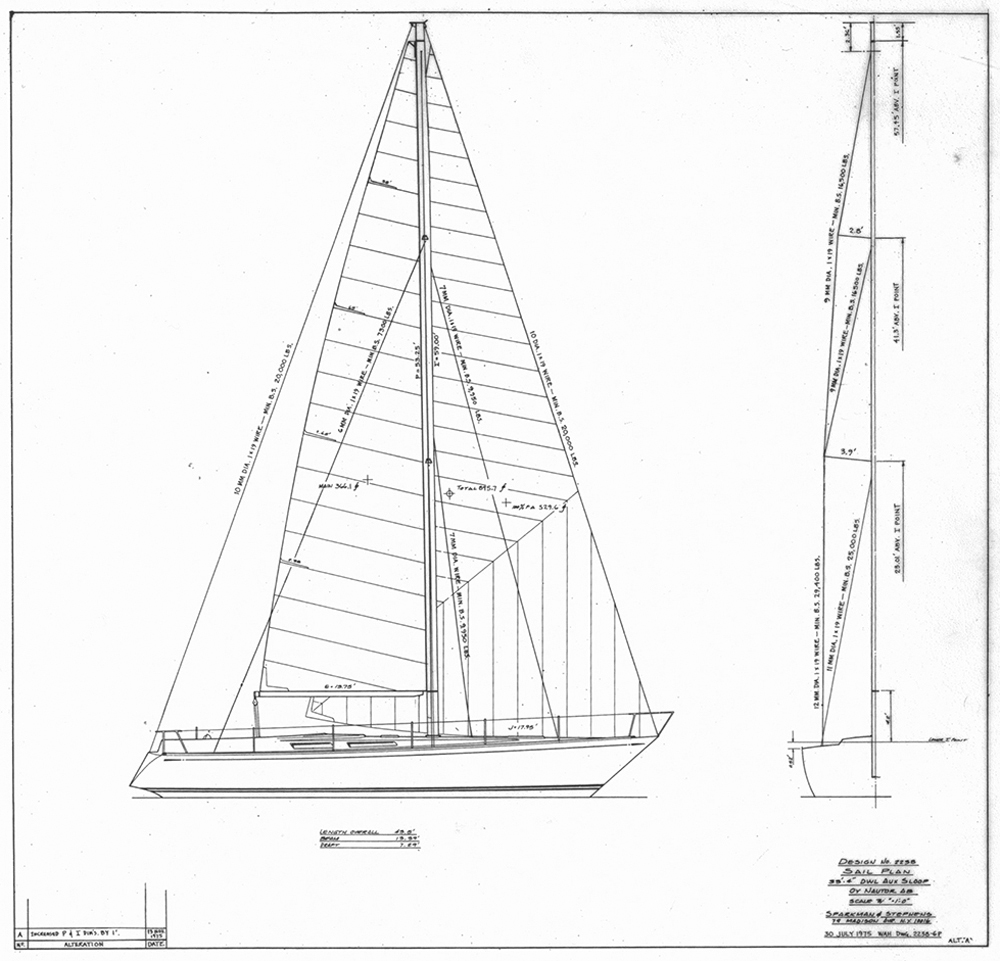

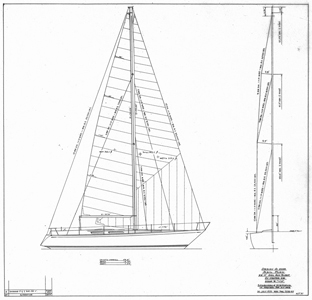

SAIL PLAN
Tall rig
I: 59 ft 17.98 m
J: 17.95 ft 5.47 m
P: 53.25 ft 16.23 m
E: 13.75 ft 4.19 m²
Fore triangle: 529.5 ft² 49.2 m²
Main: 366.1 ft² 34 m²
Genoa 150%: 794.3 ft² 73.8 m²
Spinnaker: 1906 ft² 177 m²
