S&S Swan Maintenance - Swan 40 templates/plans
08 July 2009 - 18:35
#1
Post Reply
Angus Macaulay
Join Date: 03 September 2008
Posts: 2

Swan 40 templates/plans
I have a Swan 40, Lucy Vincent, and have a few missing pieces of cabinetry down below. Specifically there appears to be a piece that goes over the diesel tank in the aft cabin area. Does anyone have the plans for that piece, or any images of that spot so I can get an idea of how it was originally done? Thanks. Angus Macaulay
08 July 2009 - 22:49
#2
Post Reply
matteosalamon
Join Date: 29 January 2007
Posts: 1022

Dear Angus,

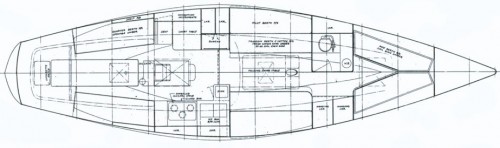

is this one enough for you? In case of affirmative answer I can send you a better definition JPG to your personal mail address.

Fair Wind

Matteo (38/067 Only You)
09 July 2009 - 21:59
#3
Post Reply
Angus Macaulay
Join Date: 03 September 2008
Posts: 2

Matteo,
Thanks, but I was looking for more detail for the specific area around the tank. I've started making my own templates, but was curious to see drawings or an image of how it was done originally.
Do you have any of the drawings that have more interior details or show the profile with interior details?
Thanks.
Angus
14 July 2009 - 23:06
#4
Post Reply
Jason T
Join Date: 03 December 2007
Posts: 22

Hi Angus,

I own Can-Can IV (40/29) I think i know the area you are looking for, do you mean the flat ply section that goes on top of the tank or the trim that goes in front of the steering gear, or something else?, if you let me know i can take pictures, templates etc, i am comming to the end of a 2 year restoration and have mislaid the bit in front of the steering but i have it somewhere if you give me time. Alternativly if you live anywhere near Poole / Lymington in the UK come and see it for your self.

Best Wishes

Jason
27 July 2009 - 04:44
#5
Post Reply
fandango
Join Date: 19 June 2007
Posts: 23

Dear All, I would be interested to see pictures of the piece that goes above the fuel tank on my S40, I am missing it as well

Rodrigo
08 September 2009 - 18:45
#6
Post Reply
leham
Join Date: 30 January 2007
Posts: 32

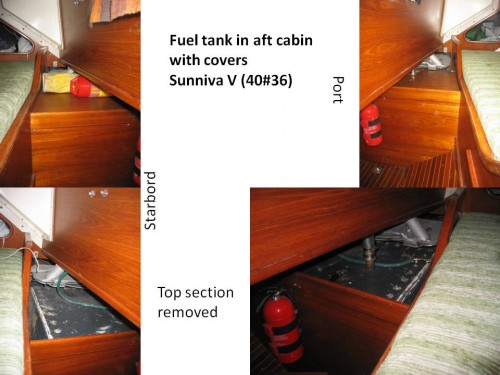

Please fgind enclosed some photos from the "fuel tank hood" in the aft cabin in my Swan 40 (Sunniva V, 40#36) with the top section on and removed seen from starbord and port. This is the original setup.

Hope this can be of help for you.

Best regards  Leif
